Draft angle is an important feature in the design for die casting, what is the min and max draft angle for casting, and how to determine them?



What is the Minimum Draft Angle for Casting?

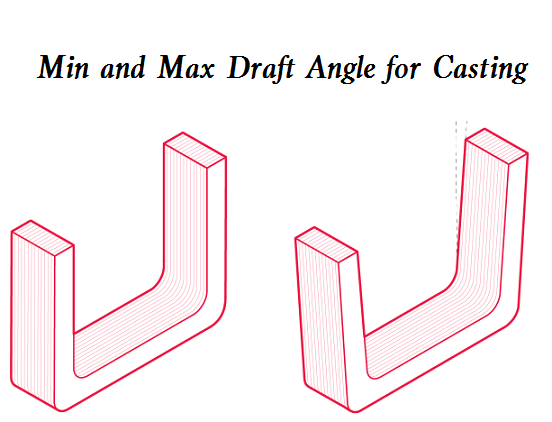

Draft angle is the degree of taper that is designed into a mold or casting pattern to facilitate the easy ejection of a casting from a mold. The minimum draft angle required for casting largely depends on the size and shape of the part, as well as the type of material being used.


As a general rule, a minimum draft angle of 1-2 degrees is recommended for most casting applications. However, more complex parts may require greater draft angles to ensure proper ejection from the mold. It’s important to note that increasing the draft angle can also affect the overall geometry of the part, so careful consideration and testing should be conducted before finalizing the design.

What is the Maximum Draft Angle for Casting?

The maximum draft angle for casting depends on the specific casting method being used and the material being cast. In general, there is no strict limit to the maximum draft angle for casting, as long as the design can still meet the functional requirements and desired aesthetics of the part.


However, extremely high draft angles may lead to excessive thinning of certain sections of the casting, which can result in weaker parts or potential defects during the casting process. Therefore, it’s important to balance the desired draft angle with other design considerations to ensure that the final casting is both structurally sound and meets the intended design requirements.

How to Determine Draft Angle in Casting

Determining the appropriate draft angle for casting depends on several factors, including the part geometry, casting material, and casting method. Here are some general steps to follow when determining the draft angle for a casting:

1) Identify the part geometry: Examine the part’s features and determine which areas may require a draft angle. The draft angle will typically be needed on vertical surfaces, such as walls or columns, to facilitate easy removal of the casting from the mold.

2) Determine the casting material: The draft angle may need to be adjusted based on the specific material being cast, as different materials have different properties that can affect the casting process.

3) Consider the casting method: The draft angle may also vary depending on the casting method being used. For example, sand casting may require a higher draft angle than investment casting.

4) Consult industry guidelines: Many industry organizations provide guidelines for appropriate draft angles based on the part geometry and material. These guidelines can provide a starting point for determining the appropriate draft angle for your casting.

5) Conduct testing: Once a draft angle has been determined, conduct testing to ensure that the casting can be removed from the mold without damage and that the final part meets the desired specifications.
