What metals are cast pistons made from and which one is the best material for making pistons? The choice of cast piston material will be affected by many other factors as well.
Metal Materials of Cast Pistons - Piston is Made of Which Material
Cast pistons can be made from a variety of metals, depending on the specific needs and goals of the engine builder or owner. Here are some of the most common metals used to make cast pistons:
– Aluminum: Aluminum is the most common material used for cast pistons. It is lightweight, corrosion-resistant, and an excellent conductor of heat. Aluminum cast pistons are often used in stock and high-performance engines.
– Cast iron: Cast iron is a durable and strong piston material material that is commonly used in diesel engines and other applications that require high strength and durability. Cast iron pistons are heavier than aluminum pistons and may not be suitable for high-performance engines.
– Steel: Steel is a strong and durable material that is often used in custom or high-performance applications. Steel cast pistons can be made from various alloys, such as 4340 steel, and can provide high strength and durability.
– Magnesium: Magnesium is a lightweight material that is sometimes used in racing engines. Magnesium cast pistons are highly resistant to heat but require special handling to prevent corrosion.
– Titanium: Titanium is a lightweight and strong material that is used in some racing engines. Titanium cast pistons are highly resistant to fatigue and wear, but are expensive and may require special manufacturing techniques.
Aluminum is a common choice for many engine applications because of its combination of strength, lightweight, and corrosion resistance. Cast iron may be used in applications that require high strength and durability, while steel is often used in high-performance and custom applications. Magnesium and titanium are less common but can provide unique properties such as lightweight and high resistance to heat or wear.
Which cast iron is used in pistons?
Cast iron pistons are typically made from gray iron, which is a type of iron that has a high carbon content and is known for its strength and durability. Gray iron is commonly used in engine components because of its ability to resist wear and deformation under high loads and extreme conditions. Cast iron pistons may also be made from other types of iron, such as ductile iron or malleable iron, which have different properties and are suitable for different applications. However, gray iron is the most common type of iron used in piston manufacturing due to its ability to provide high strength and durability at a reasonable cost.
How Cast Pistons Are Made?
-
Mold Creation
A reusable metal mold (called a die) is designed in the shape of the piston. This mold is precision-machined to meet specific dimensions and surface quality requirements. -
Melting the Alloy
Aluminum or aluminum-silicon alloy (commonly used for pistons) is melted in a furnace. The temperature is carefully controlled to ensure uniformity and proper fluidity. -
Pouring (Casting)
The molten metal is poured into the mold, usually by gravity. In more advanced setups, low-pressure or vacuum casting may be used to reduce air bubbles and improve metal flow. -
Cooling and Solidification
The molten metal cools and solidifies in the mold. This forms the basic piston shape. Cooling rates are controlled to influence grain structure and minimize internal defects. -
Ejection and Trimming
Once cooled, the piston is removed from the mold. Excess material (called flash) is trimmed away, and any gates or runners used to feed the mold are cut off. -
Heat Treatment (Optional)
To improve mechanical properties, pistons may undergo heat treatment (e.g., T6 tempering), which increases strength and hardness. -
Machining
Precision CNC machining is performed on the piston to create exact dimensions—this includes the ring grooves, pin bore, skirt profile, and sometimes oiling holes. -
Surface Finishing
Final surface treatments, such as coating the skirt with anti-friction materials or anodizing, are applied to improve performance and reduce wear.
Advantages of Cast Iron Pistons
-
Exceptional Durability
Cast iron pistons are highly durable and can withstand intense mechanical stress, making them ideal for heavy-duty or industrial engines that operate under continuous high load. -
High Load-Bearing Capacity
Cast iron has excellent structural strength, allowing these pistons to endure high combustion pressures without deforming or cracking—especially useful in diesel and stationary engines. -
Superior Heat Resistance
Cast iron maintains strength at elevated temperatures better than aluminum. This thermal stability makes cast iron pistons well-suited for engines that run hot for long periods. -
Dimensional Stability
Unlike aluminum, cast iron expands less with heat. This helps maintain tighter tolerances between the piston and cylinder wall, reducing the risk of scuffing or seizure during high-temperature operation. -
Longer Wear Life
Cast iron pistons typically wear down more slowly than aluminum ones, offering a longer operational lifespan in harsh or continuous-use conditions. -
Reduced Engine Overheating
While aluminum dissipates heat faster, cast iron’s slower heat transfer can help stabilize internal temperatures and reduce thermal cycling, which can contribute to improved engine longevity.
Features of Each Piston Materials
1. Aluminum Pistons
Lightweight: Reduces engine weight, improves acceleration and fuel efficiency.
Excellent Heat Conductivity: Quickly dissipates heat, helping prevent detonation and engine knock.
Corrosion Resistant: Naturally resists oxidation, suitable for long-term reliability.
Easy to Machine and Cast: Lower manufacturing cost and widely supported by aftermarket parts.
Ideal For: Stock engines, high-performance gasoline engines, and general-purpose use.
2. Cast Iron Pistons
Extremely Durable: Withstands high mechanical stress and thermal loads.
High Strength: Maintains structural integrity under high combustion pressure.
Low Thermal Expansion: Offers stable fit and tolerance in extreme heat conditions.
Excellent Wear Resistance: Provides long service life, especially in continuous-use engines.
Ideal For: Diesel engines, industrial machines, generators, and heavy equipment.
3. Steel Pistons
High Strength and Fatigue Resistance: Ideal for turbocharged or high-RPM engines.
Withstands Extreme Combustion Pressure: Does not deform or crack easily under stress.
Durable at High Temperatures: Suitable for engines that run hotter or longer.
Can Be Made From Advanced Alloys (e.g., 4340): Tailored for performance applications.
Ideal For: Custom builds, racing engines, and modern high-boost diesel applications.
4. Magnesium Pistons
Extremely Lightweight: Reduces reciprocating mass, allowing higher RPMs and faster response.
Good Heat Resistance: Performs well in high-temperature racing environments.
Improves Engine Efficiency: Less inertia improves throttle response and acceleration.
Ideal For: Racing engines where every gram counts, but needs special corrosion protection.
5. Titanium Pistons
Very Strong and Lightweight: Combines high strength with low weight for ultimate performance.
High Fatigue and Wear Resistance: Suitable for high-RPM, high-load engines.
Corrosion and Heat Resistant: Maintains performance under extreme conditions.
Exclusive and Rare: Expensive and requires advanced manufacturing methods.
Ideal For: High-end motorsport or aerospace-level engine builds.

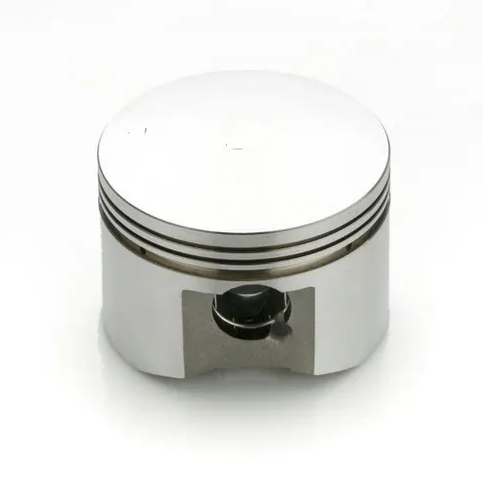

Aluminum Piston vs Cast Iron Piston
Both aluminum and cast iron pistons have advantages and disadvantages, and the choice of material depends on the specific needs and goals of the engine. Here are some differences between aluminum and cast iron pistons:
– Weight: Aluminum pistons are generally lighter than cast iron pistons. Reducing reciprocating mass can improve engine performance and acceleration.
– Thermal conductivity: Aluminum is an excellent conductor of heat, so aluminum pistons can dissipate heat more effectively than cast iron pistons. This can help to reduce engine temperatures and prolong engine life.
– Durability: Cast iron pistons are generally more durable than aluminum pistons, as they can withstand higher loads and stress levels. Cast iron pistons are often used in diesel engines and other heavy-duty applications where strength and durability are critical.
– Cost: Aluminum pistons are typically more expensive to manufacture than cast iron pistons. Cast iron is a relatively inexpensive material, while aluminum requires more processing and is more expensive to produce.
– Expansion: Aluminum expands more than cast iron as it heats up, which can create a larger clearance between the piston and cylinder wall. This can lead to increased noise and vibration and may require tighter piston-to-wall clearances.
Cast Pistons vs Hypereutectic Pistons
Cast pistons are made by pouring molten aluminum into a mold. They’re affordable, easy to mass-produce, and sufficient for stock or mild performance engines. However, they have lower strength and thermal resistance compared to other types.
Hypereutectic pistons are a type of cast piston made from aluminum with a high silicon content (typically over 12%), which improves wear resistance, reduces thermal expansion, and allows for tighter piston-to-wall clearances. This makes them more efficient and quieter than standard cast pistons. However, they are more brittle and can crack under high loads or detonation, making them less suitable for high-boost or nitrous setups.
Forged Pistons vs Cast Pistons
Forged pistons are made by compressing aluminum under high pressure, which aligns the metal’s grain structure and makes the piston stronger, tougher, and more resistant to cracking or failure under extreme loads and high RPM. They handle boost, nitrous, and racing stress much better, but tend to expand more with heat and may require looser clearances (which can cause cold-start noise).
Cast pistons, while cheaper and quieter, are weaker and more prone to failure under severe performance conditions. They’re ideal for OEM use or engines that won’t see extreme temperatures, detonation, or modifications.
